ImageMaster® HR IR

ImageMaster® HR IR

赤外レンズ用 自動MTF測定装置

ImageMaster® HR IR

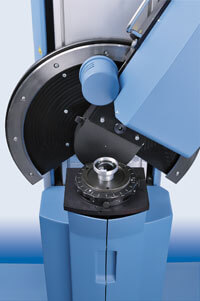

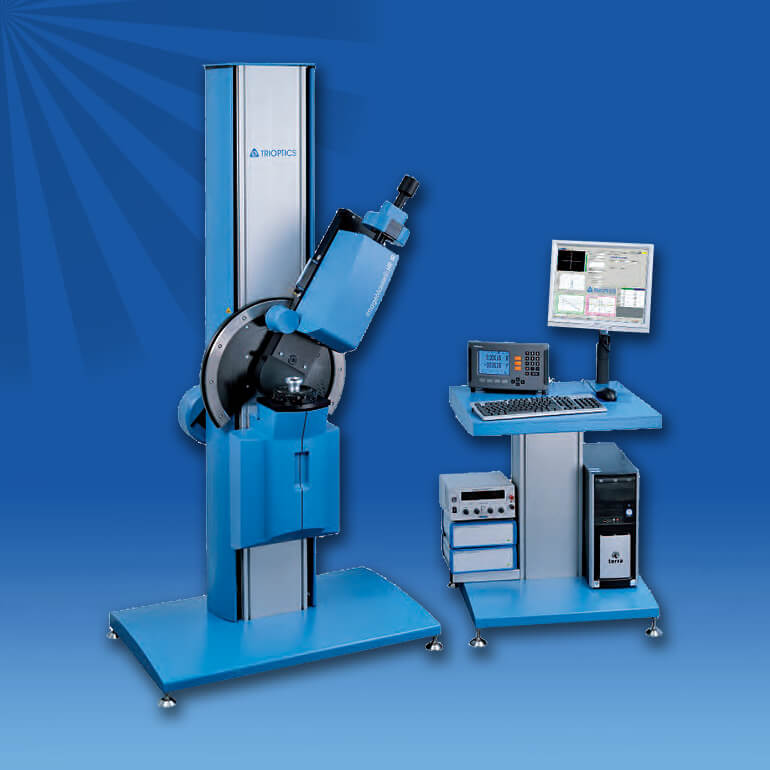

ImageMaster HR IR, based on the well proven ImageMaster HR, has been developed to fulfill customer requirements for highest accuracy and flexibility. It is designed for the measurement of MTF and other optical parameters of today’s high-end IR optics in R&D and production. The fully computer-controlled instrument comes with a high-quality mirror collimator, broadband IR light source and IR focal plane array image sensor.It can be configured for testing optical systems with:
・Object at infinity
・On-axis and off-axis (up to ± 90°)
・Clear aperture up to 60 mm
・VIS spectral range optional
・Sample EFL range 10-150 mm

ImageMaster® HR IR

Software

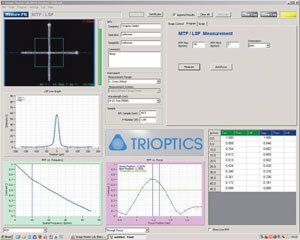

ImageMaster HR IR Software showing the measurement results

▲ImageMaster HR IR Software showing the
measurement results

Technical data

Technical data
製品カタログ日本語版
更新日: 2016/10/10
