Wave Master IOL

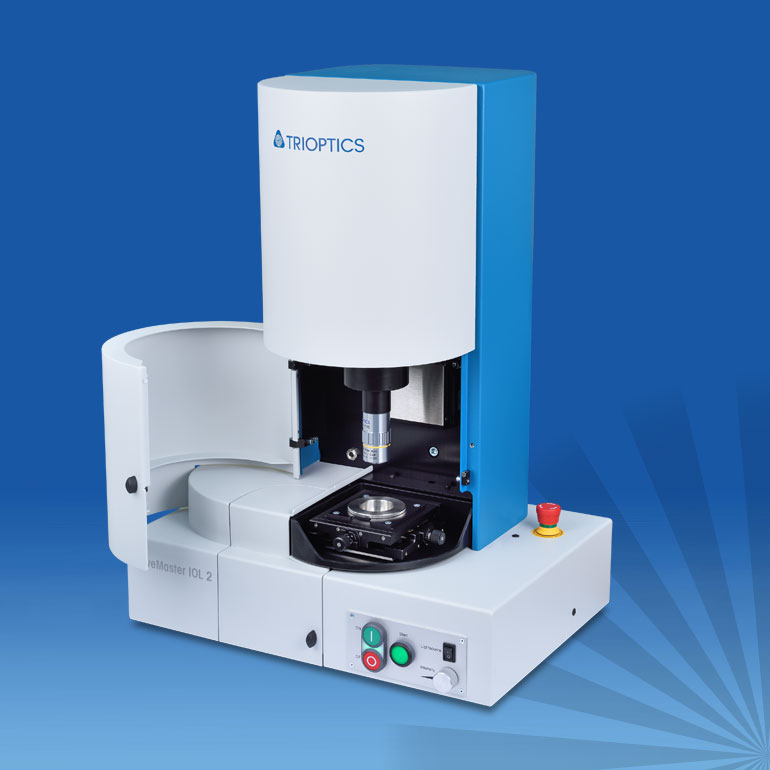

Wave Master® IOL

眼内レンズ用 透過波面測定装置

Wave Master® IOL

眼内レンズ用の透過波面収差測定装置です。

Sample Holder for in-air measurements

Sample Holder for in-air measurements

Model Eye as sample holder for in-situ

Model Eye as sample holder for in-situ

Technical data

・ Aperture diameter: 0.5 to 15 x 15 mm
・ Number of lenslets: up to 140 x 140
・ Power Range: -100 to +100 D
・ Power absolute accuracy: 0.1 to 0.3 %
・ Power resolution: 0.01 D
・ Power map lateral resolution: 20 μm for 3 mm aperture
・MTF absolute accuracy: 2 % MTF
・ Wavefront measurement absolute (relative) accuracy rms: </20 (λ /50)
・ Measurement time for 1 IOL including Power, MTF and aberrations: 5 sec
・ Wavelength: 532 nm
・ Focus position accuracy: 1.5 μm

測定画面(IOL)

測定画面(IOL)

測定画面(MTF)

測定画面(MTF)

製品カタログ日本語版
