ATS100

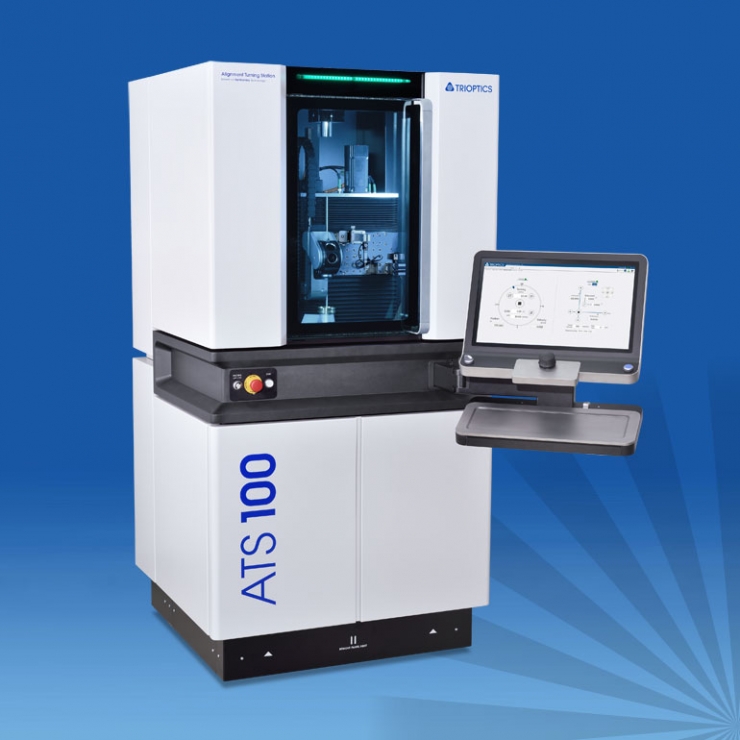

▲ATS100

ATS 100 is a compact and stable alignment turning station which machines lenses with a diameter of up to 100 mm and a weight of up to 3 kg.
Like all alignment turning stations developed by TRIOPTICS the ATS 100 is a combination of a compact and stable turning machine and TRIOPTICS‘ proven lens centering measurement technology. All ATS devices are used to machine lens cell so that the symmetry axis of the cell coincides with the optical axis of the lens assembled in the cell. With the setup of the ATS 100 the remaining lens centering error after machining is better 3 µm. Furthermore the front and rear contact surfaces of the mounted lens can be measured with high precision and then machined.
The setup of the ATS 100 is based on a stable granite frame and is equipped among others with the automated alignment chuck, a precision roller bearing, an autocollimator and further measurement technology.

ATS100

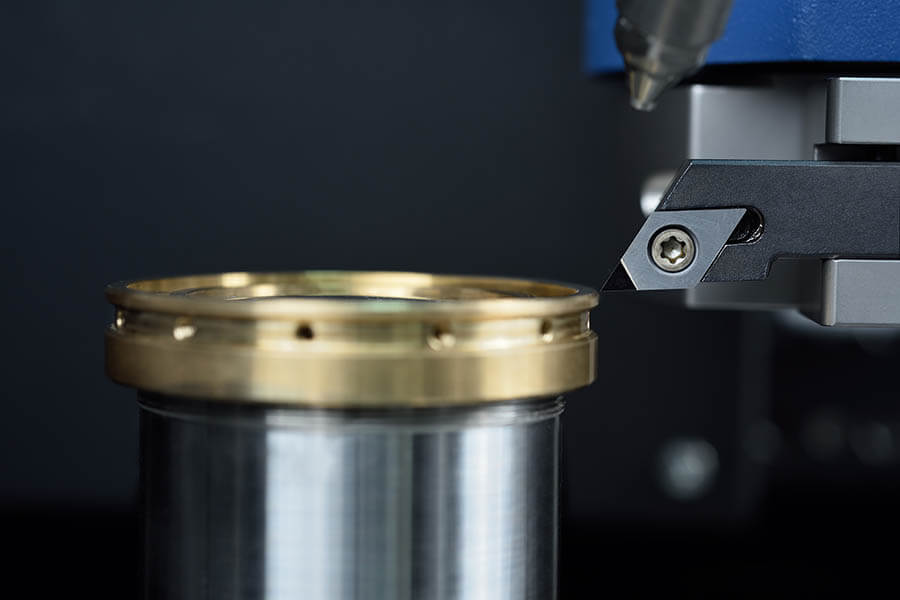

During the alignment turning process
the mounted lens is machined so that
the cell axis and the optical axis of the lens coincide.

Software

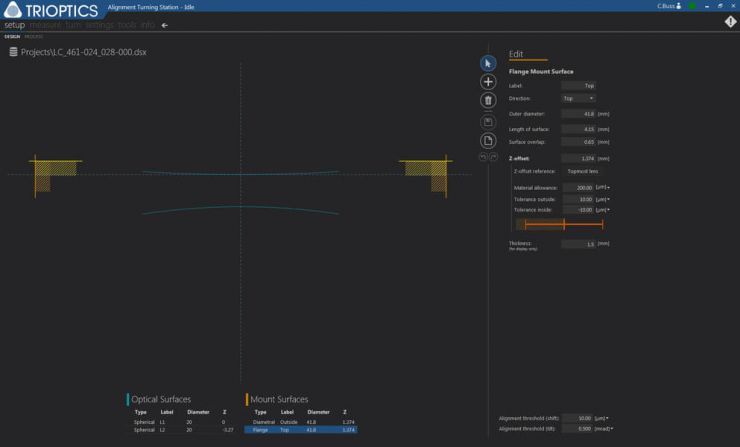

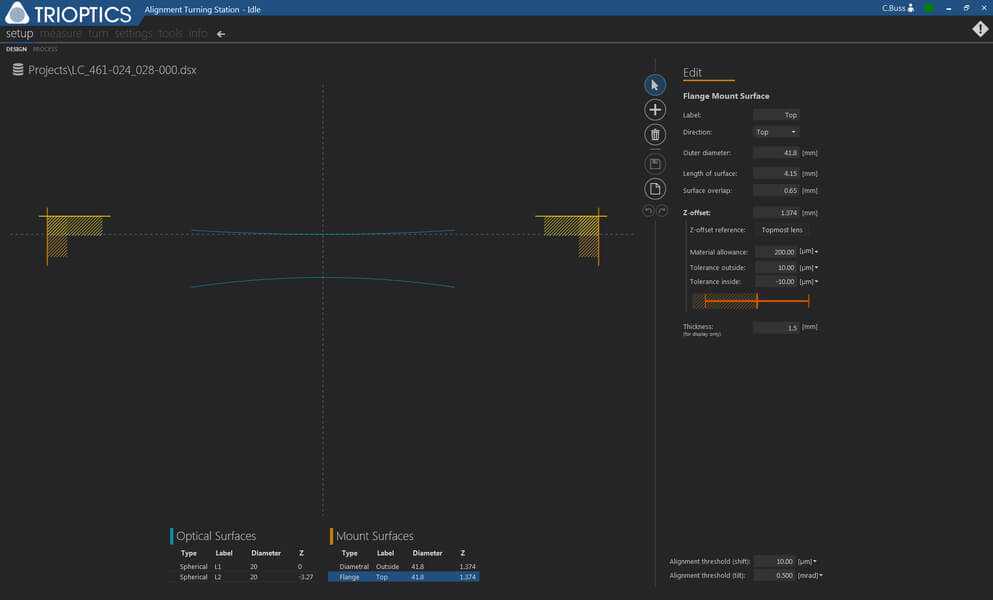

Input of the design data

▲Input of the design data

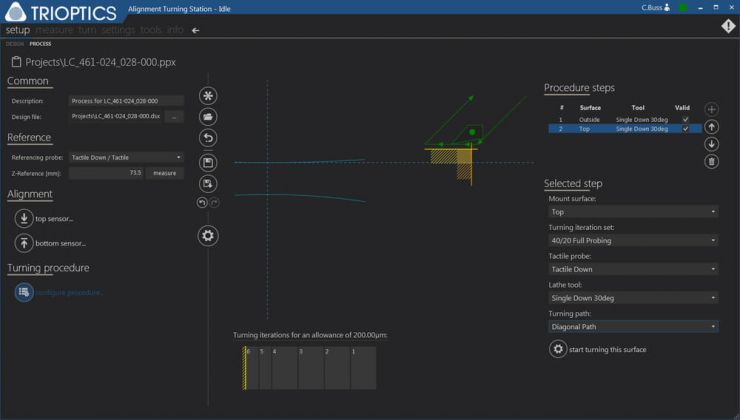

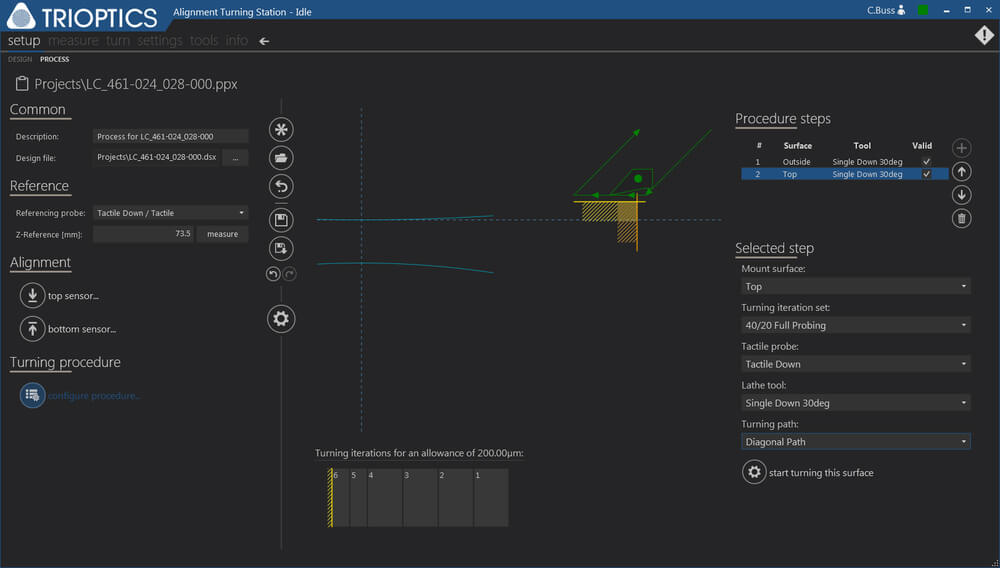

Software view machining of the work piece

▲Software view machining of the work piece
