Spectro Master HR Compact

Spectro Master® HR Compact

高精度分光屈折率測定装置

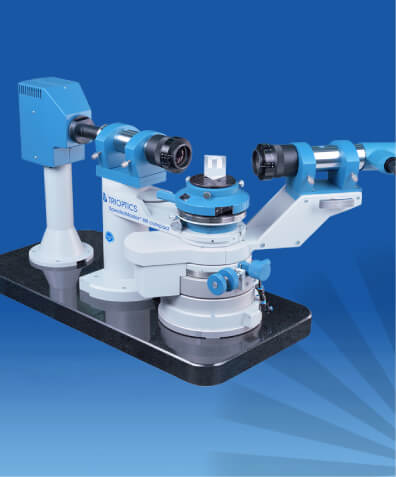

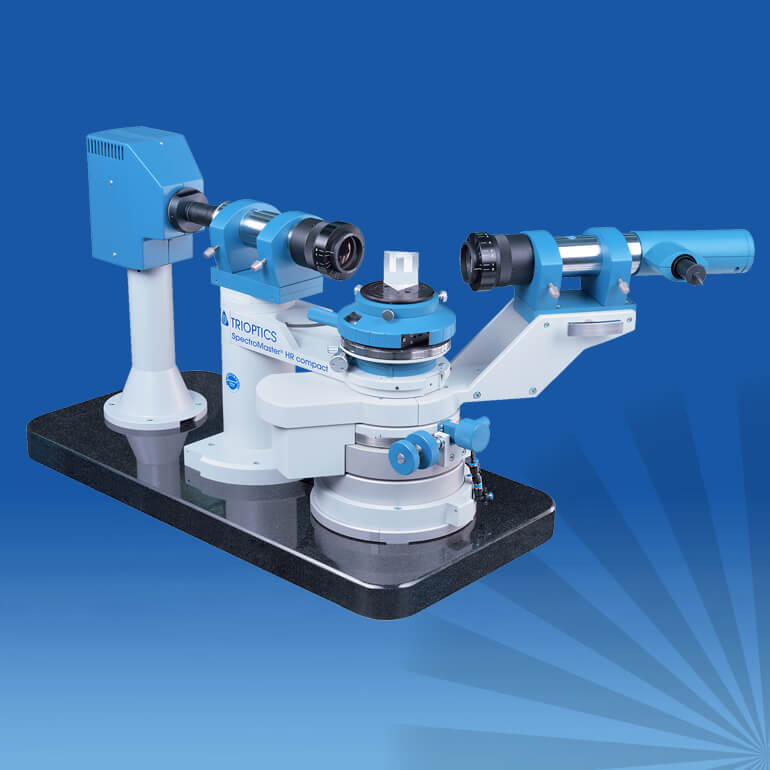

Spectro Master® HR Compact

The SpectroMaster® HR Compact Goniometer-Spectrometer uses refractive optics and is therefore limited to the visible spectral range from 365nm to 1014 nm.
The high accuracy of this instrument is achieved by special focusing optics, so that the telescope and the collimator can be focused to best collimation at the specific measurement wavelength.
The manual SpectroMaster® HR Compact employs a differential micrometer screw for the greatest sensitivity and accuracy during the manual adjustment of the telescope angle. Due to the sophisticated software assistance and alignment indicators, it has been proven that manual operators can reach the same high accuracy of the motorized version but at the cost of reduced measurement speed.

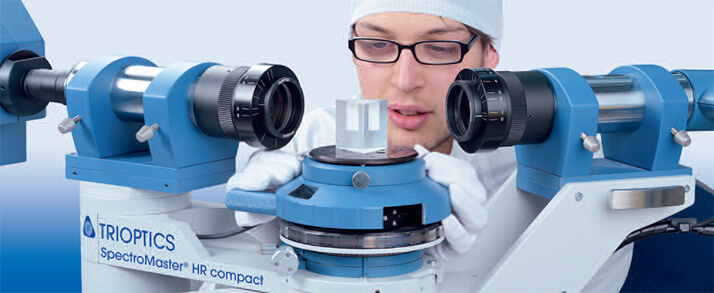

Spectro Master® HR Compact in use®

Spectro Master® HR Compact in use®

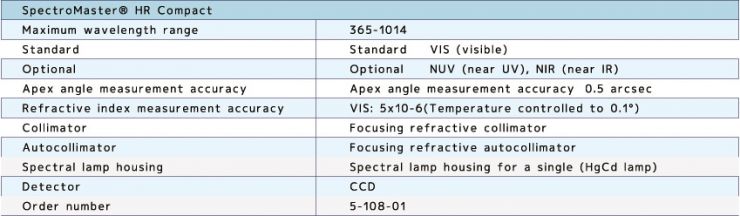

Technical data
