OPTICAL TESTING INSTRUMENTS DEFACTO STANDARD

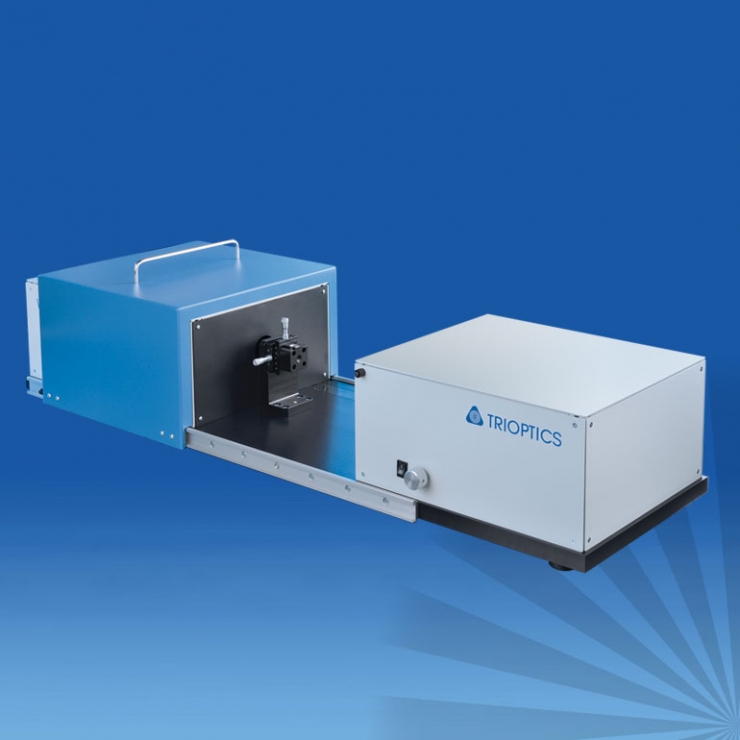

WaveMaster® Plan

平面光学系 波面収差測定装置

WaveMaster Planは、平面板やウェッジなどの平面光学系の品質管理に適しています。このシステムは、内蔵のシャックハルトマン(Shack-Hartmann)センサーを使用して、サンプルの透過波面を測定します。

Key Features

  • ・Comprehensive analysis of planar optical elements
  • ・Rapid measurement speed for high sample throughput
  • ・Sample holder for alignment in the submicron range.
  • ・Only minimal realignment of samples is required for wavefront measurements of sample series.
  • ・High measurement accuracy of the Shack-Hartmann sensor
  • ・Real-time comparison between wavefront data and sample lenses or design values
  • ・Collimated light source
  • ・Vibration-resistant design
  • ・Comprehensive software functions for measurement and analysis
  • ・Simple and rapid measurement of planar elements. If adjustment is needed, then only center the sample roughly on the sensor
